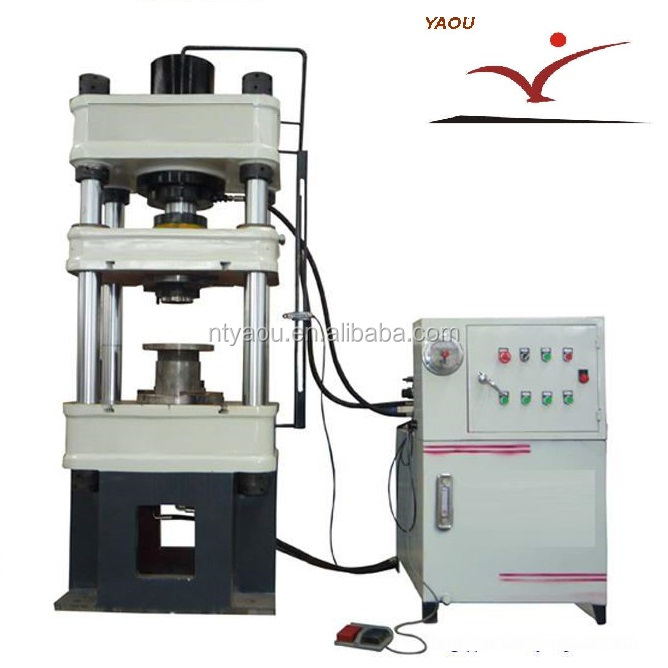

Automatic powder molding hydraulic press machine

  • Automatic powder molding hydraulic press machine
  • Automatic powder molding hydraulic press machine
  • Automatic powder molding hydraulic press machine
  • Automatic powder molding hydraulic press machine

Automatic powder molding hydraulic press machine

    Unit Price: 15000~18000 USD
    Min. Order: 1 Set/Sets
    Packaging: Export standard packing or customer request
    Productivity: 10
    Brand: NTDY
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Supply Ability: 10
    Certificate: CE
    HS Code: 8462919000
    Port: SHANGHAI

Basic Info

Model No.: YQZ 79 series

Product Description

Products Description
YQ79Z series (40T-630T) automatic powder forming hydraulic machine is mainly suitable for the production of powder metallurgy and mechanical parts mainly based on structural parts. It is also suitable for the compression molding of precision ceramics, electronic ceramics and cemented carbide products. This series of presses have independent hydraulic and electrical systems, with special functions such as automatic feeding and unloading of bags, floating pressing, and mold release protection. The electrical control adopts PLC programmable controller, and the centralized control of buttons is also equipped with a dead limit device. So as to ensure the consistency of products.
Product Paramenters
parameter name
Uint
YQ79Z dry powder forming hydraulic press
40
63
100
160
200
Nominal power
KN
400
630
1000
1600
2000
Ejection force
KN
400
1900
250
350
450
Maximum working pressure of liquid
mpa
25
25
25
25
25
Slider stroke
mm
450
500
500
600
700
Ejection stroke
mm
150
150
150
180
300
Maximum distance of slider
mm
1120
1000
1200
1200
1500
Slider stroke speed
Return trip Down
mm/s
80
1000
220
160
100
work
mm/s
12
200
14
12
6
return trip
mm/s
80
20
140
100
85
Stroke speed of top cylinder
push-out
mm/s
100
80
60
55
60
return trip
mm/s
18-50
160
80
75
150
Worktable effective table
Left right
mm
500
570
720
680
1000
Before and after
mm
460
500
580
580
900
Column center distance
Left right
mm
560
650
800
800
1120
Before and after
mm
340
340
430
430
720
Body size
Left right
mm
2200
2500
2800
2800
3270
Before and after
mm
1250
1250
1300
1500
3100
Height above ground
mm
3300
3400
3600
4000
3725
Total motor power
KW
5.5
7.5
11
15
22
Machine weight
kg
1700
3800
4800
7200
12000
parameter name
Uint
YQ79Z dry powder forming hydraulic press
250
315
500
630
Nominal power
KN
2500
3150
5000
6300
Ejection force
KN
330
630
800
1500
Maximum working pressure of liquid
mpa
25
25
25
25
Slider stroke
mm
450
800
600
600
Ejection stroke
mm
180
300
350
350
Maximum distance of slider
mm
2050
1250
1750
2450
Slider stroke speed
Return trip Down
mm/s
150
100
100
100
work
mm/s
15-25
5
12
6
return trip
mm/s
190
60
80
60
Stroke speed of top cylinder
push-out
mm/s
120
60
80
40
return trip
mm/s
100
150
160
55
Worktable effective table
Left right
mm
900
1260
1400
1320
Before and after
mm
690
1200
1400
1200
Column center distance
Left right
mm
/
1400
1600
1620
Before and after
mm
/
900
1100
820
Body size
Left right
mm
5100
3235
6275
5820
Before and after
mm
4200
2060
2785
2000
Height above ground
mm
4545
4295
5045
5560
Total motor power
KW
44
22
50.5
50
Machine weight
kg
14000
17000
42000
45000

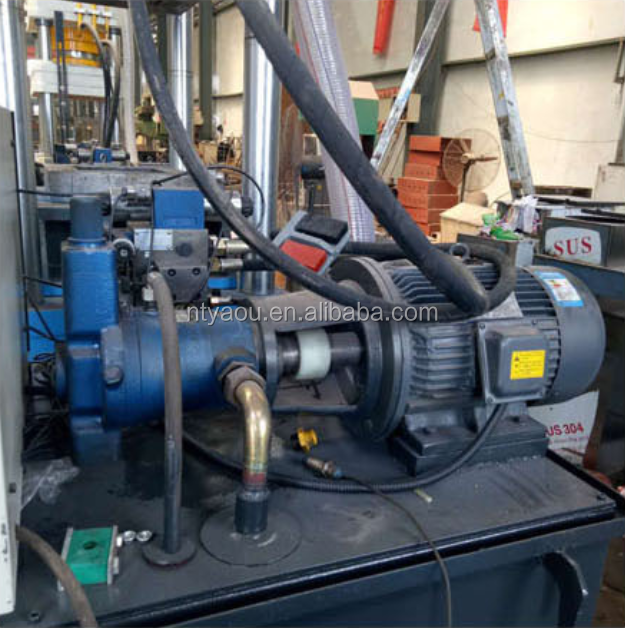

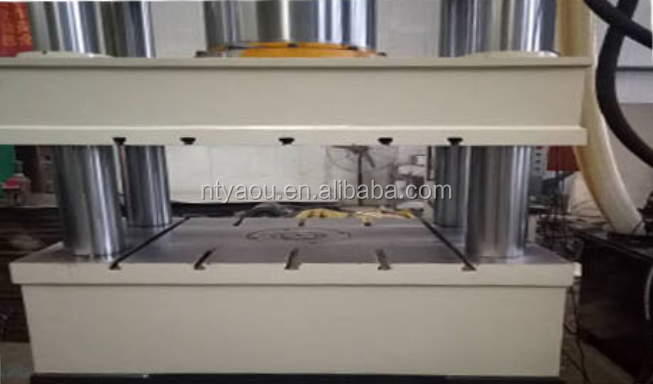

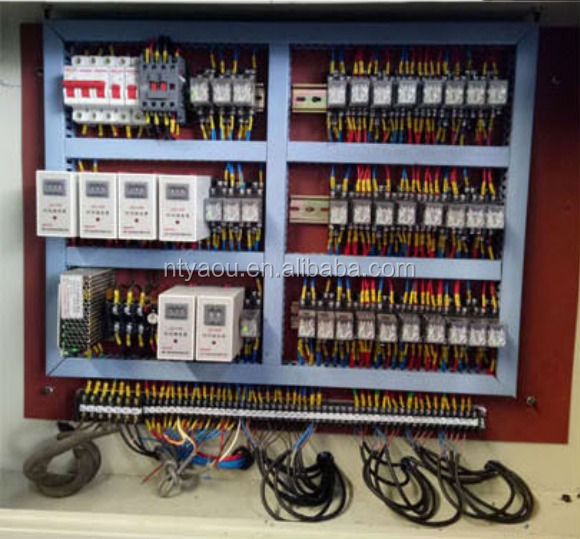

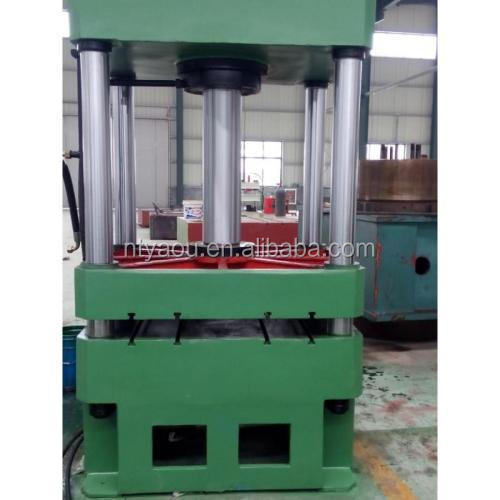

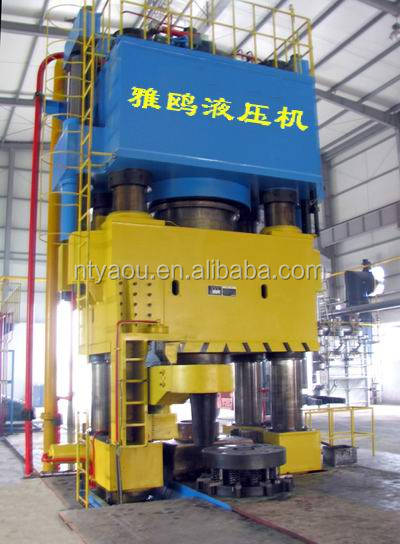

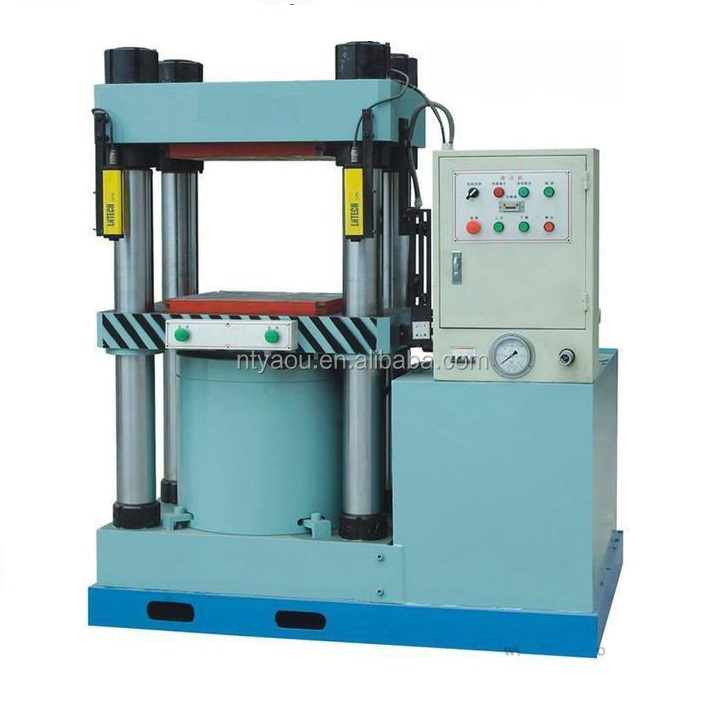

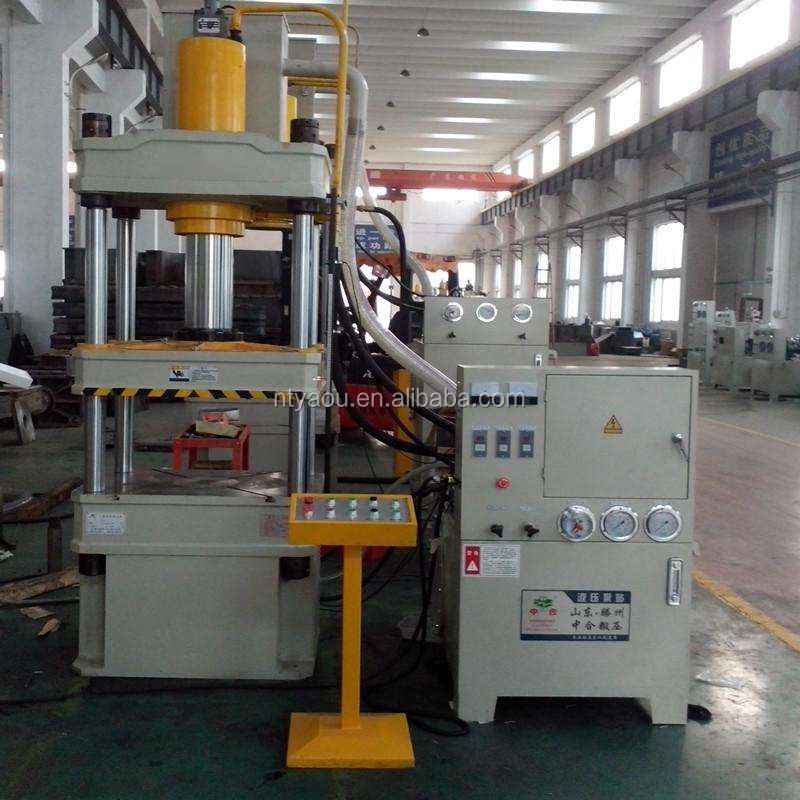

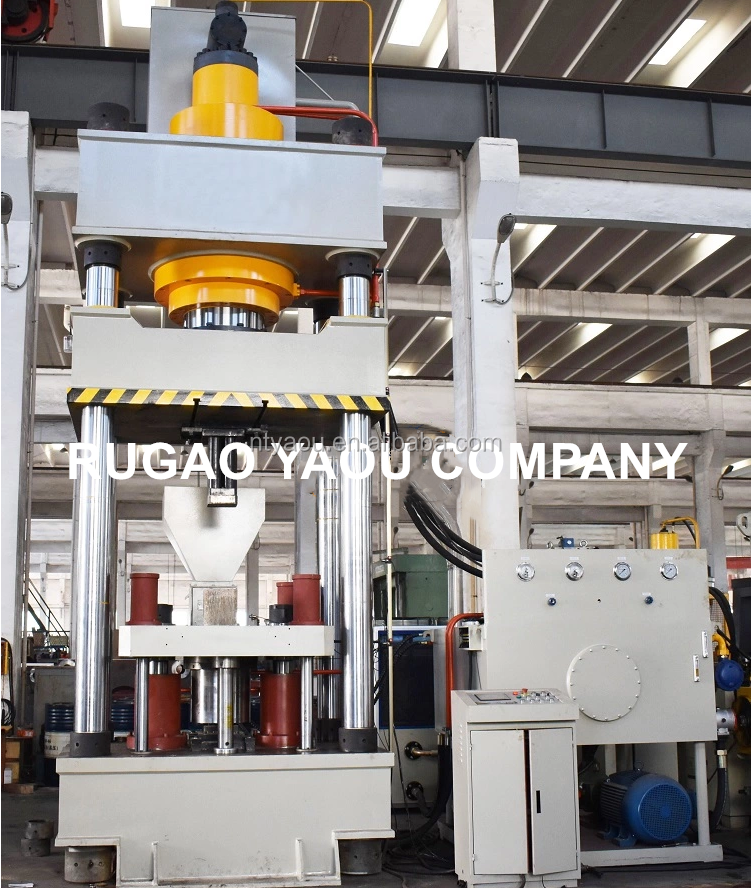

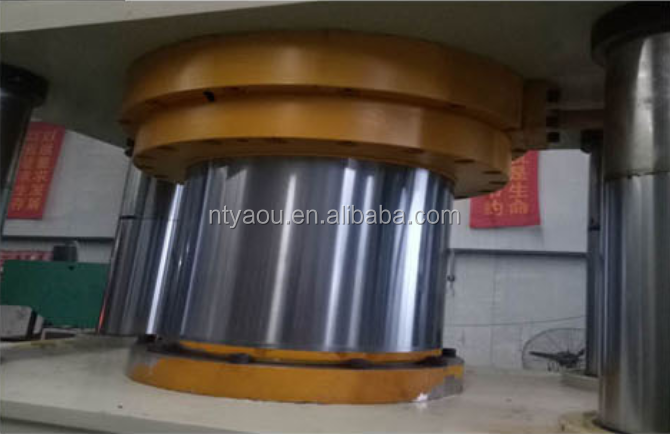

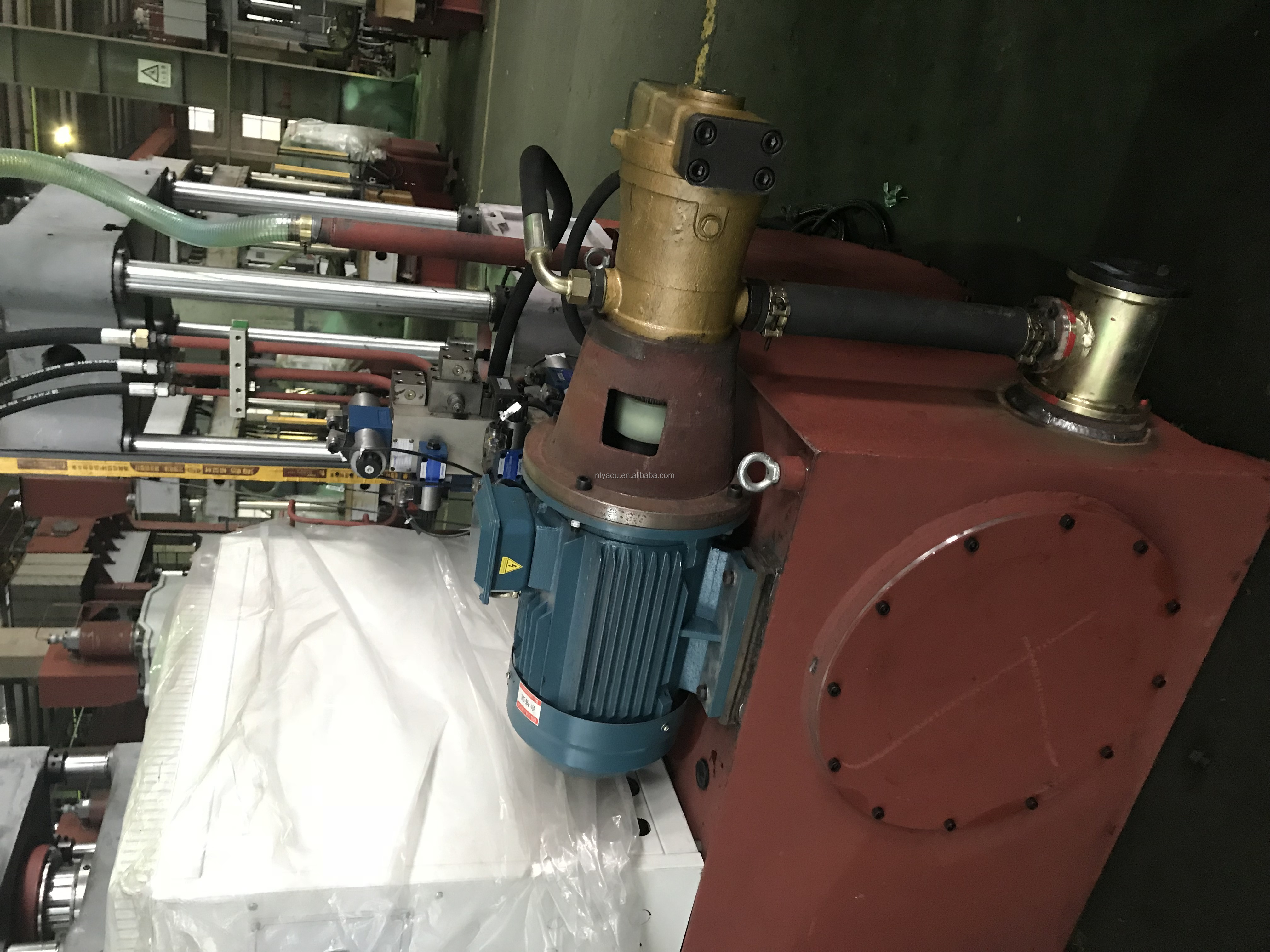

Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and Other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Our company mainly deals in hardware tools, combined tools, electric tools, special tools for petroleum, metal processing machinery and petroleum drilling equipment. Diagonal Cutting Plier,Oil Drill Pipes,Drilling Tools,Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

The company provides a variety of metal processing machinery: shears, rolling machines, bending machines, hydraulic presses, etc.


Certifications
Recommend Products

FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
.
